ES2100
A Revolutionary NVMe-oF System to Redefine Next-Generation Storage
Flexible Storage Configurations
Innovative and Patented Design
Stunning I/O Performance
Extreme Networking Performance
Innovative and Patented Design
Stunning I/O Performance
Extreme Networking Performance
Powered by
Application
Composable Disaggregated Infrastructure
High Performance Computing
AI and Machine Learning
Flexible Storage Configurations

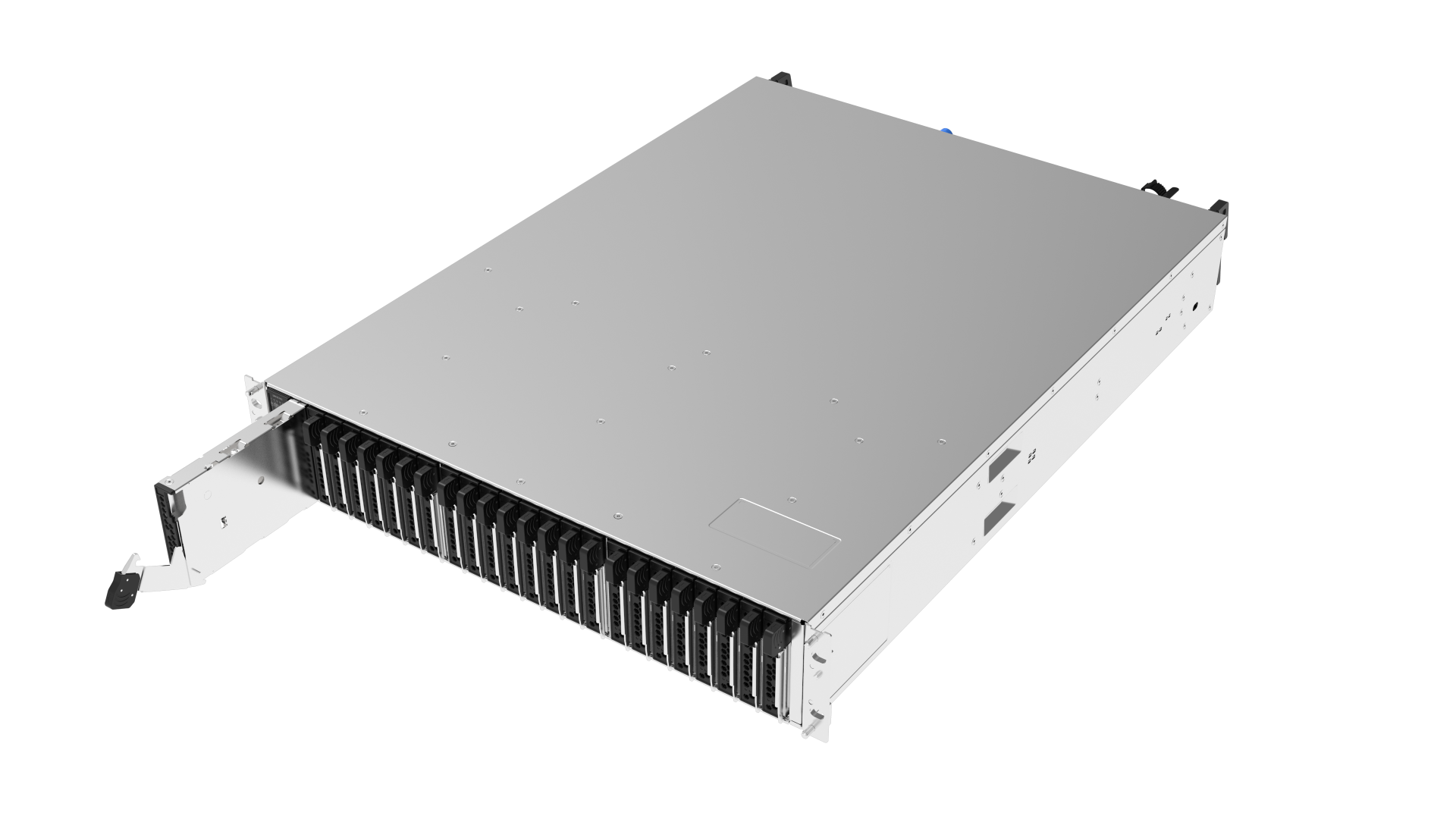

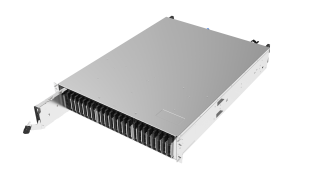

With a midplane-less design and drive carrier adapters, the high-performance EBOF storage supports a wide variety of storage configurations. The chassis can accommodate 24 NVMe SSDs in the E3.S and U.2 form factors.
Innovative and Patented Design
The storage boasts its multiple patented designs. The virtual midplane allows optimal airflow and eliminates a single point of failure. Designed with high serviceability, the switch module and drive carrier make replacement fast and hassle free.
__24K055ieLc.jpeg "performance (1)")
Stunning I/O Performance
Establishing incredible benchmark in the industry, the product delivers impressive 20 million 4K random read IOPS* to accelerate data-intensive applications for faster data insights.
*tested with 25G Ethernet SSDs
*tested with 25G Ethernet SSDs
Extreme Networking Performance
The system provides up to 24 ports of 200GbE connectivity, delivering breakthrough networking performance and ultra high speed to support today’s demanding applications such as big data and self-driving.
Certification
| Storage |
|
| Networking |
|

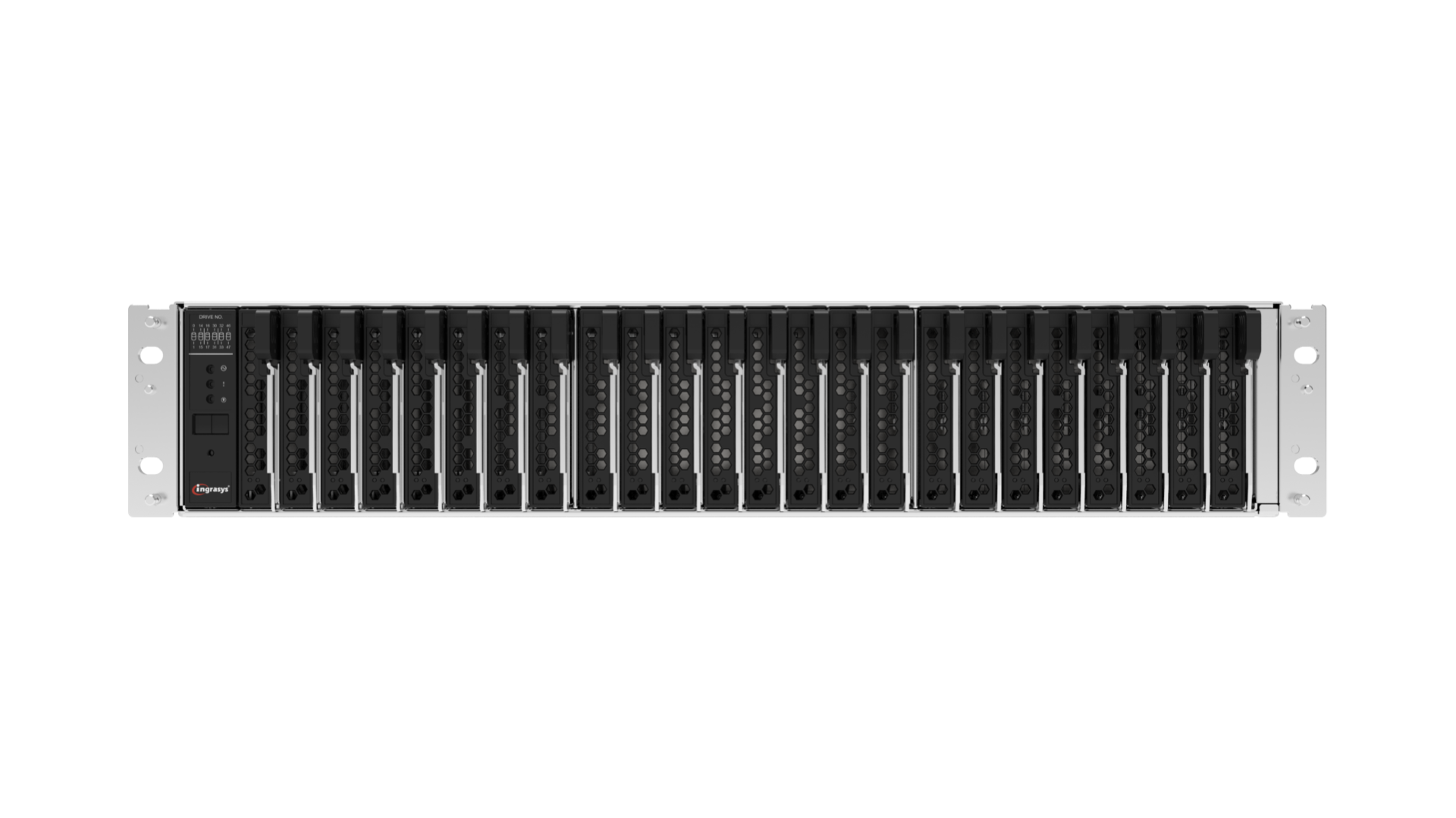

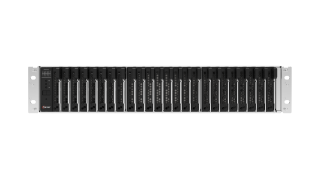

| Front Panel | 1 x Push Button 1 x Power LED / 1 x UID LED / 1 x System Health LED 1 x Dual 7-Segment LED |

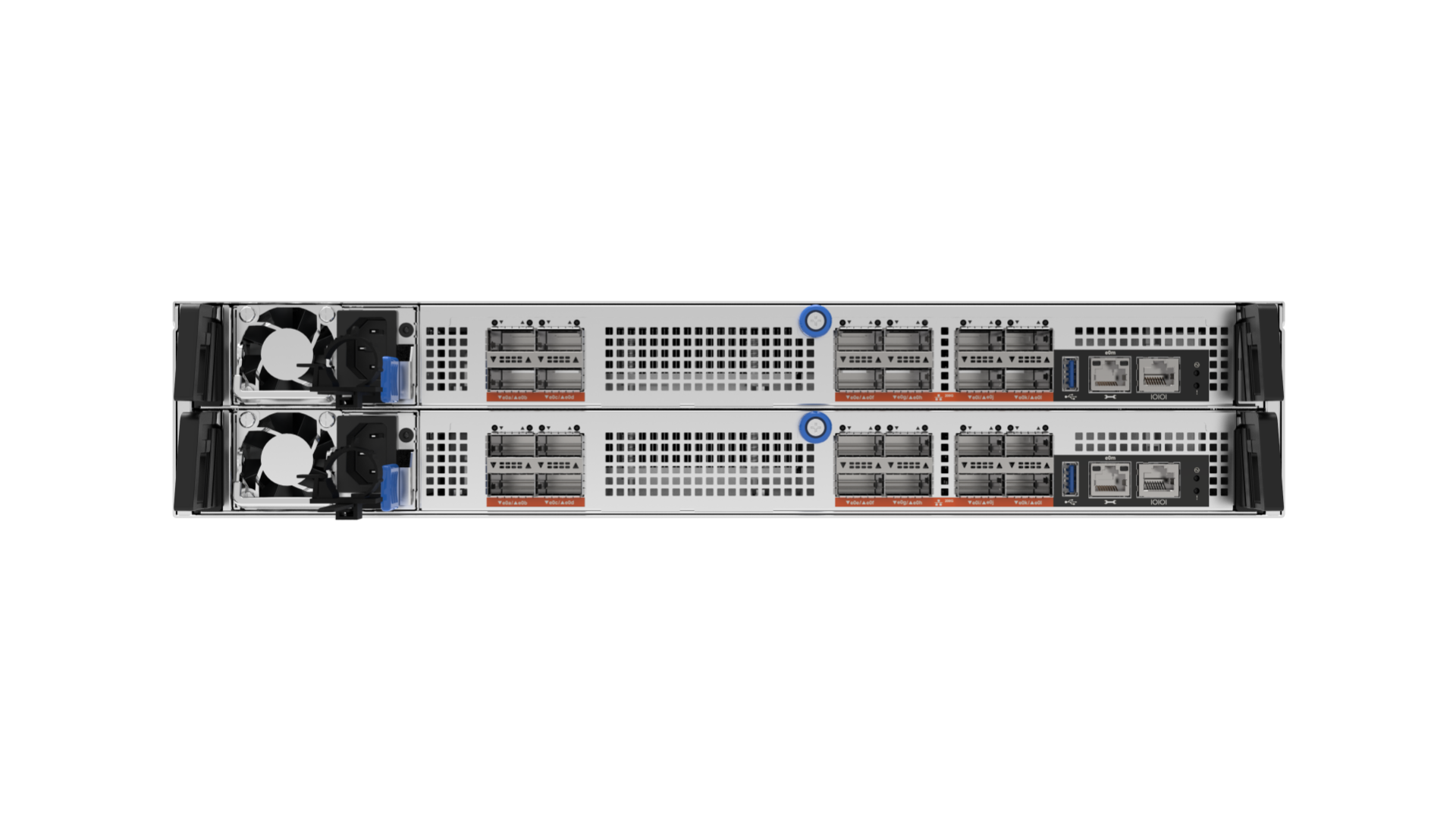

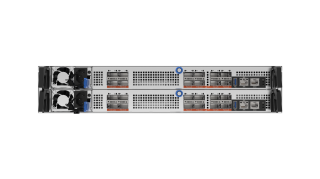

| Rear Panel | 24 x 200GbE QSFP56 Ports 2 x 1G RJ45 Ports 2 x RJ45 for Debugging 2 x USB 3.0 Ports |
| AC Input | 100~240V, 50-60Hz |
| Weight | 29kg with SSDs |
| Power Supply | 1+1 Redundant 1600W Platinum Power Supplies |
| Fans | 6 x 40*56mm Fans per Switch Module for N+1 Cooling Redundancy |
| Certification | UL/CB/CE/BSMI |
| Chassis Dimensions (H x W x D) | 3.43" x 17.6" x 23.5" / 87.1mm x 447.2mm x 597.0mm |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity | 8% to 90%RH |
| Non-operating Relative Humidity | 10% to 95%RH |
