GB6181N

Unrivaled Liquid-Cooled HGX H100 8-GPU AI Server for Ultimate AI Performance

Support NVIDIA HGX H100 8-GPU
Deploy Latest NVIDIA NVLink® & NVSwitch™ Technology

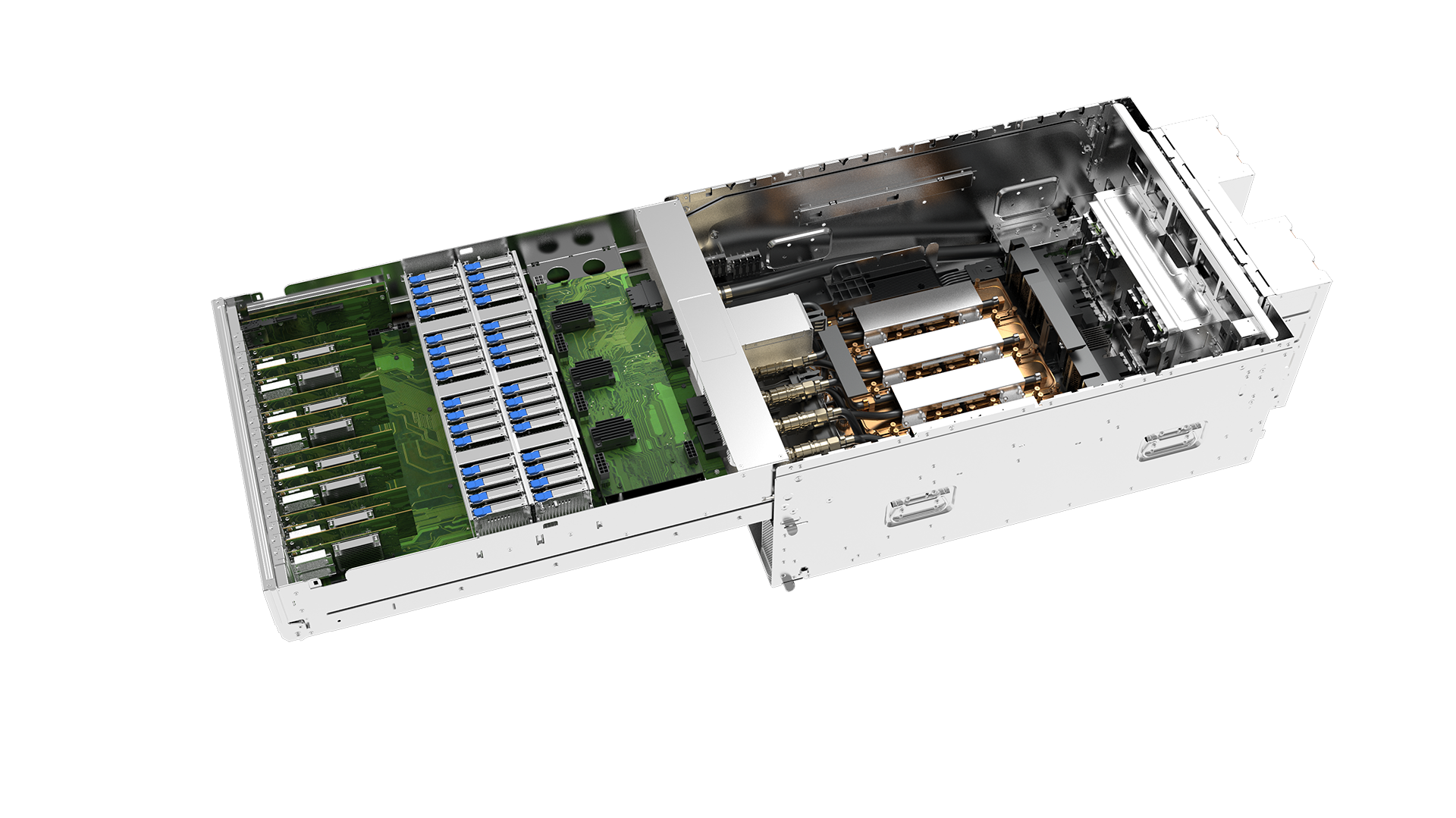

Two-layer GPU & IO Sleds for Easy Scalability and Better Thermal Efficiency
Support 20 x PCIe 5.0 Slots & 32 x NVMe Drive Bays
Rack-integrated Liquid Cooling Solution

Datasheet

Application

Generative AI

Large Language Model (LLM)

Hyperscale Data Center

High Performance Computing

AI and Machine Learning

Overview

Spec

Unparalleled HGX Hl00 8-GPU Al Server

Integrating a NVIDIA HGX baseboard with 8 H100 GPUs, the AI server brings together the full power of accelerated NVIDIA GPUs, liquid cooling technology, and high-speed PCIe Gen5 connectivity to bring breakthrough performance for the next generation of AI-enabled applications.

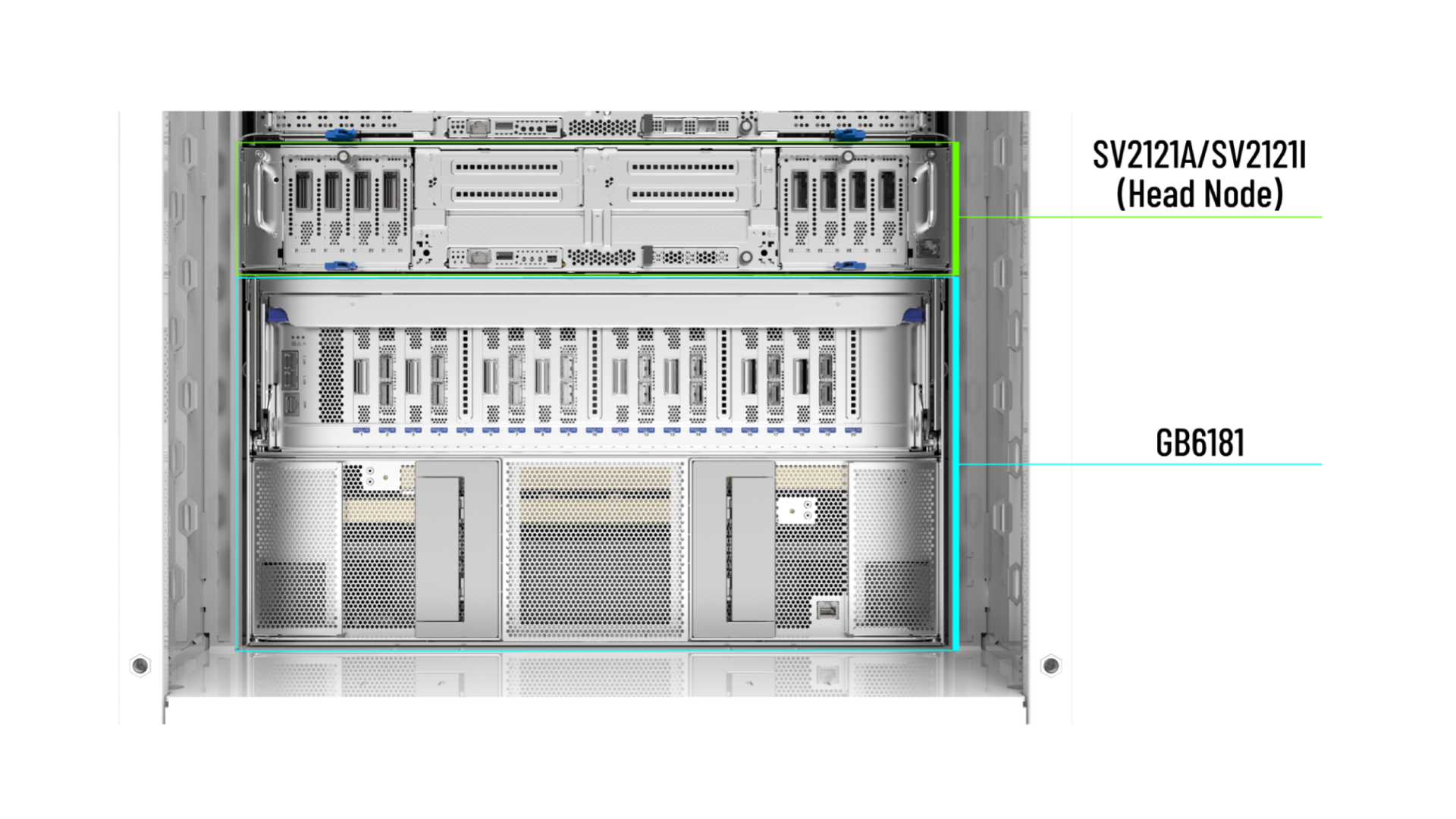

Innovative Disaggregated Approach

The AI server can be paired with a single CPU head node server, creating a unified AI solution. This disaggregated GPU and CPU approach enhances flexibility, enabling you to select the CPU head node server that best suits your needs.
(Ingrasys head node solution: SV2121A/SV2121I)

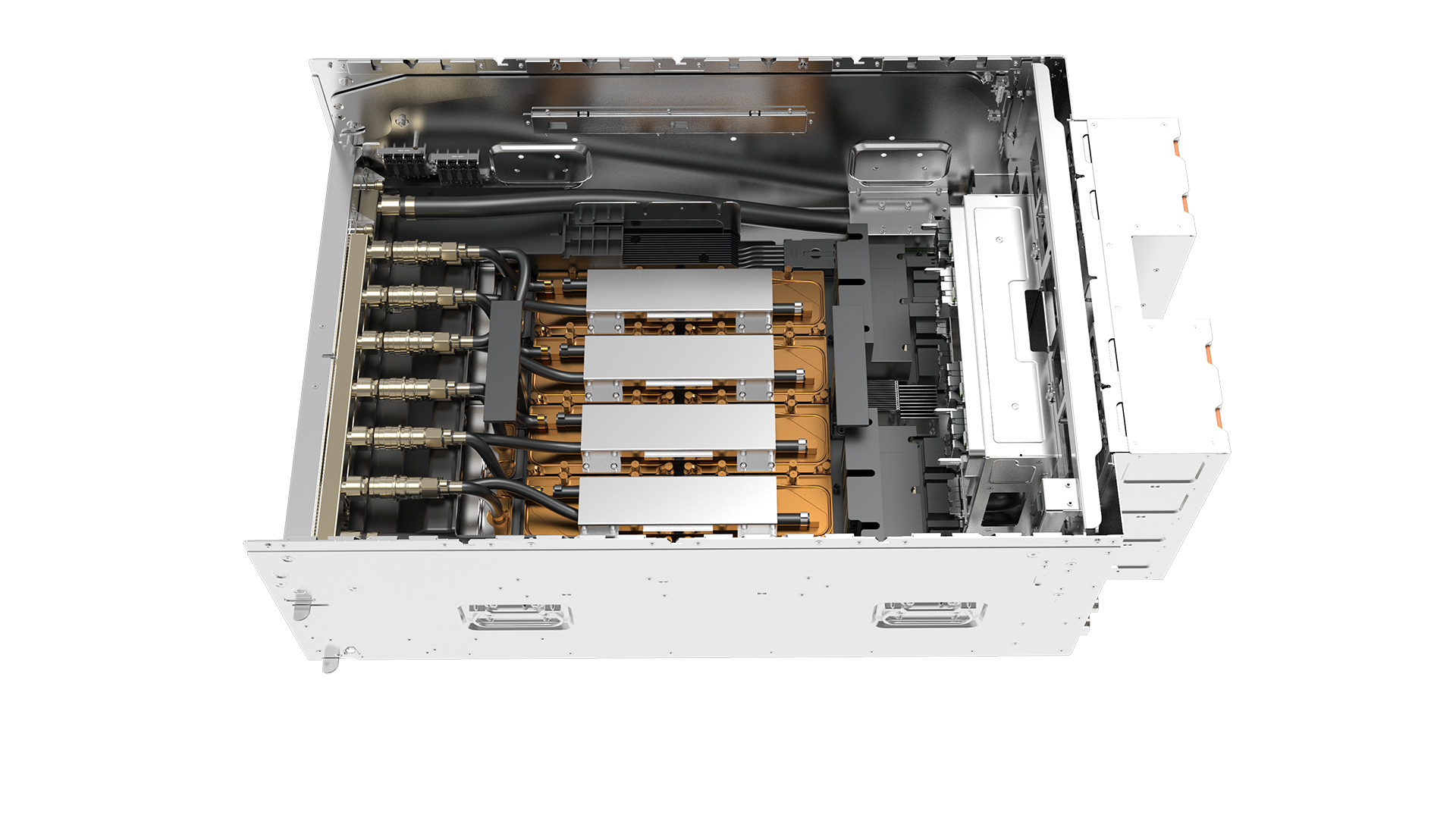

Rack-Integrated Liquid Cooling Solution

The 6U server, compliant with Open Rack Spec v3, incorporates liquid cooling technology to provide high-performance computing capabilities that generative AI and HPC demand while minimizing energy consumption for a reduced environmental footprint and lower carbon emissions.

Certification

Supported GPU	NVIDIA HGX H100 8-GPU
Expansion Slots	20 x PCIe 5.0 x16 FHHL Slots
Storage	32 x Hot-swap U.2 NVMe Drive Bays
Front Panel	1 x Power LED, 1 x UID LED, 1 x Attention LED 1 x RJ45 for BMC Dedicated Management 2 x RJ45 for 1GbE Ethernet
Form Factor	6 OU Rackmount (3 OU IOB Sled with 3 OU GPU Sled)
Chassis Dimensions (H x W x D)	11.1” x 21.0” x 34.1” / 283.1mm x 535.0mm x 867.5mm
Management	1 x ASPEED AST2600
Power Supply	Centralized 48V Bus Bar with PDB
Fans	16 x 60*56mm for N+1 Cooling Redundancy
Cooling Solution	Liquid Cooling Solution
Certification	CE/FCC/RCM/BSMI/UL/IECEE CB
Operating Temperature	10°C to 35°C (50°F to 95°F)
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity	8% to 85%RH
Non-operating Relative Humidity	5% to 95%RH
