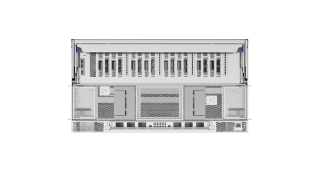

GB6181I
AI-Enhanced 8-GPU Server Built on Intel® Gaudi® 3 AI Platform
Support 8 Intel® Gaudi® 3 AI Accelerators on a Universal Baseboard
Two-layer GPU & IO Sleds for Easy Scalability and Better Thermal Efficiency
Common Chassis Design that can Accommodate Various Vendor GPU Accelerators
Support 20 x PCIe 5.0 Slots & 32 x NVMe Drive Bays
Liquid Cooling Solution

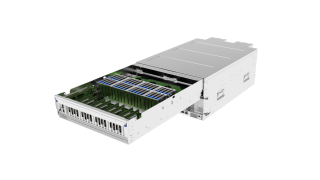

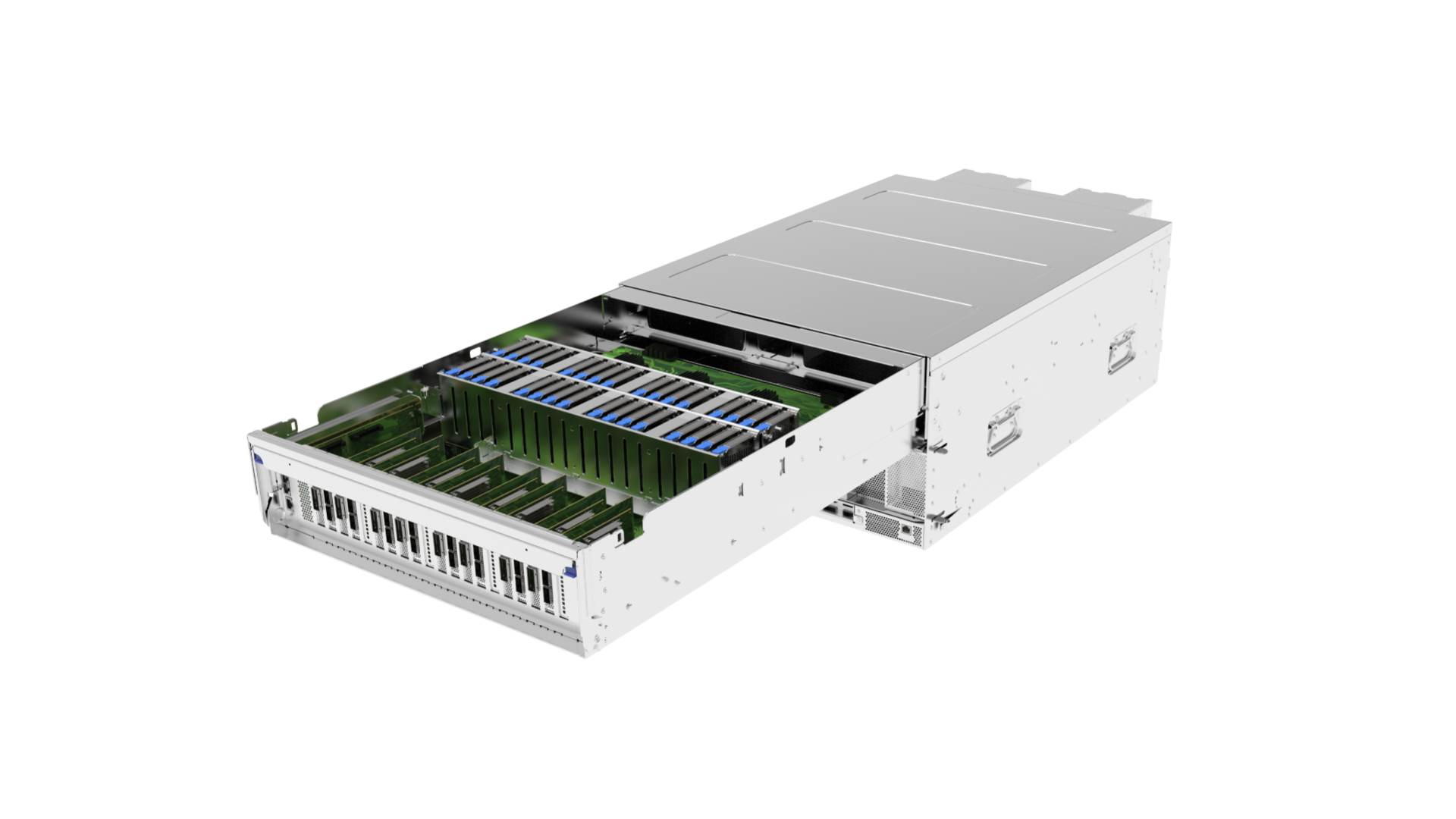

Two-layer GPU & IO Sleds for Easy Scalability and Better Thermal Efficiency
Common Chassis Design that can Accommodate Various Vendor GPU Accelerators
Support 20 x PCIe 5.0 Slots & 32 x NVMe Drive Bays
Liquid Cooling Solution
Powered by
AI-Enhanced Gaudi 3 Solution
Ingrasys Gaudi 3 AI training and inference platform stands as a robust solution for organizations looking to drive generative AI with superior performance and scalability. With its industry-standard networking , the platform can easily fit into Ethernet infrastructure customers already own and enables efficient system scaling to support AI workload at any scale.
Innovative Disaggregated Approach
The AI server can be paired with a single CPU head node server, creating a unified AI solution. This disaggregated GPU and CPU approach enhances flexibility, enabling you to select the CPU head node server that best suits your needs.
(Ingrasys head node solution: SV2121A/SV2121I)
(Ingrasys head node solution: SV2121A/SV2121I)

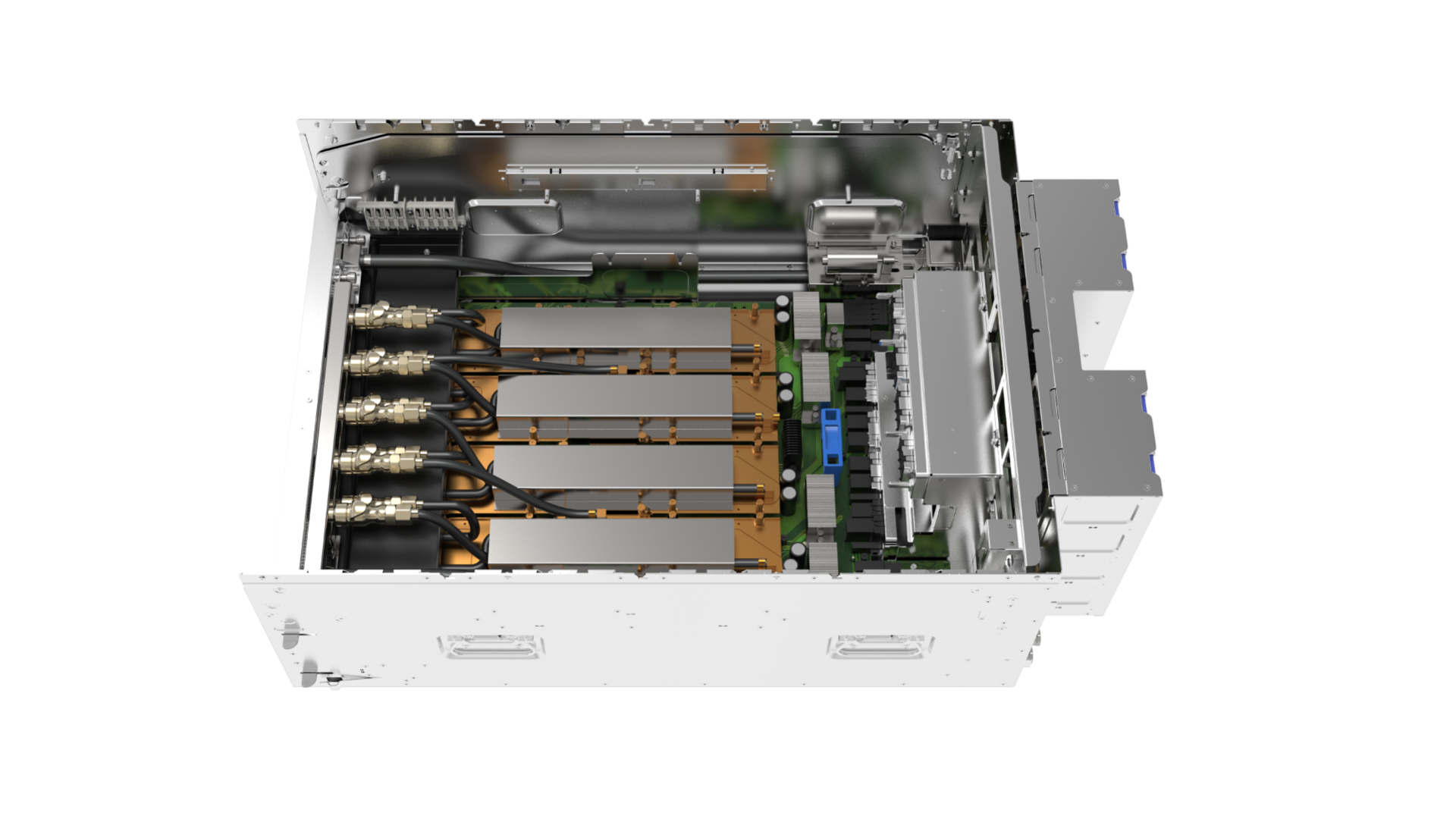

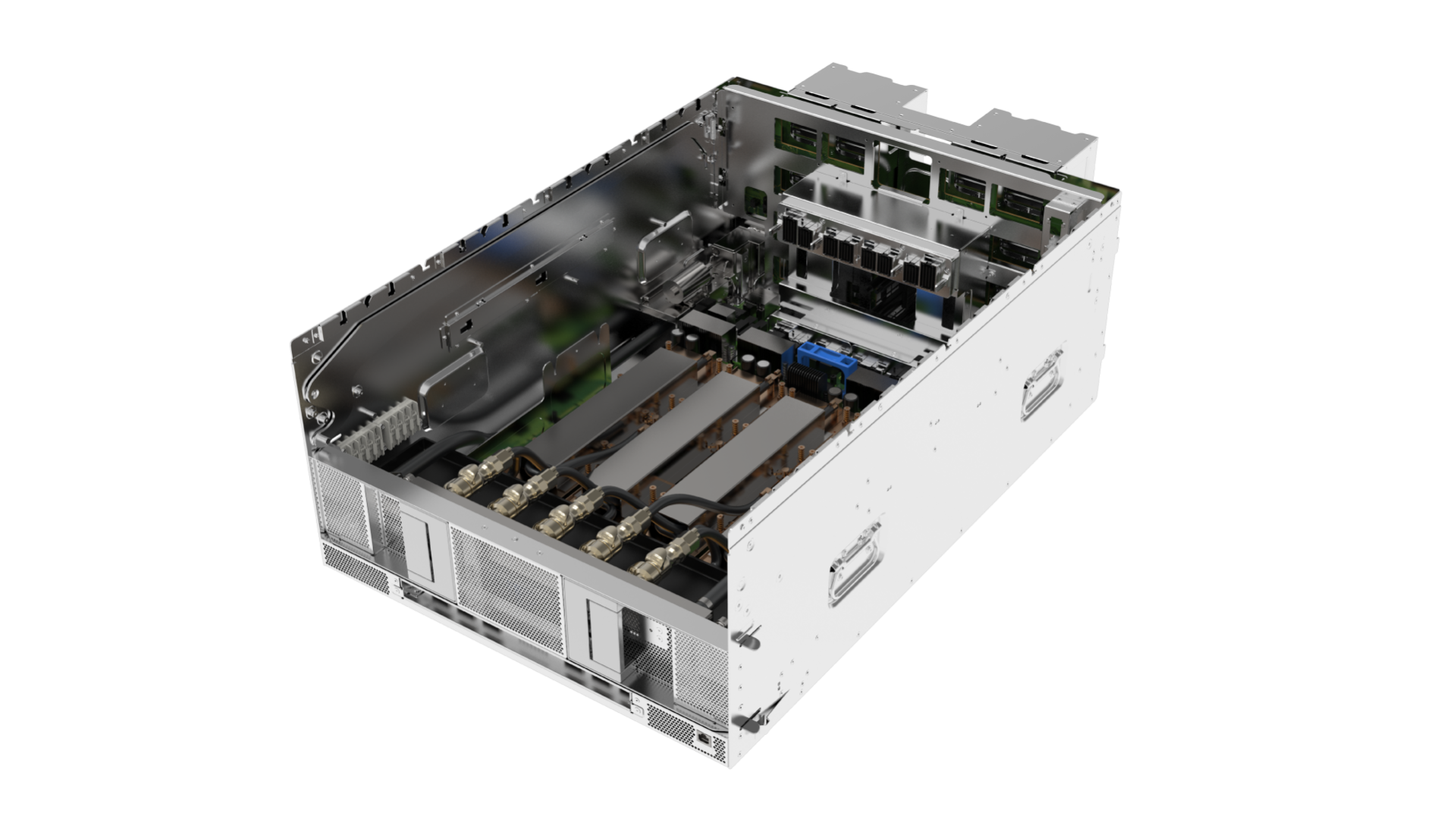

Rack-Integrated Liquid Cooling Solution
Ingrasys leads the industry with the first Intel® Gaudi® 3 liquid-cooled solution on the market, setting a new standard in efficient, sustainable, and powerful data center solutions. The solution provides high-performance computing capabilities demanded by generative AI and HPC applications, while minimizing energy consumption for a reduced environmental footprint and lower carbon emissions.
Certification
__24K03a3WVu.png)
__24K03SMIKw.png)
| Supported GPU | 8 x Intel® Gaudi® 3 AI Accelerators on a Universal Baseboard |
| Expansion Slots | 16 x PCle 5.0 x16 HHHL Slots, 4 x PCle 5.0 x8 HHHL Slots |
| Storage | 32 x Hot-swap U.2 NVMe Drive Bays |

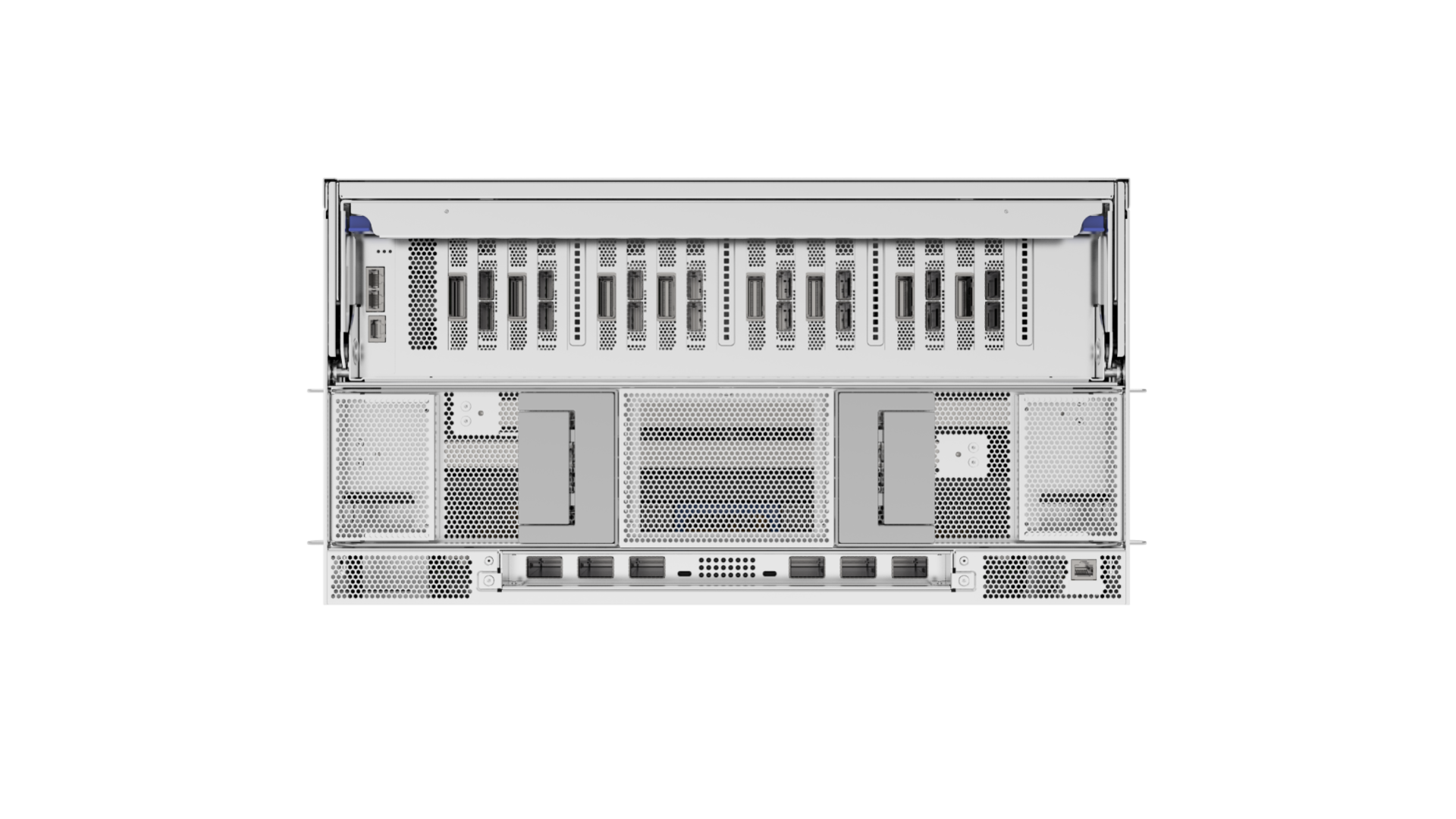

| Front Panel | 1 x Power LED, 1 x UID LED, 1 x Attention LED 1 x RJ45 for BMC Dedicated Management 2 x RJ45 for 1GbE Ethernet |
| Form Factor | 6 OU Rackmount (3 OU IOB Sled with 3 OU GPU Sled) |
| Chassis Dimensions (H x W x D) | 11.1” x 21.0” x 31.85” / 283.1mm x 535.0mm x 809.0mm |
| Management | 1 x ASPEED AST2600 |
| Power Supply | Centralized 48V Bus Bar with PDB |

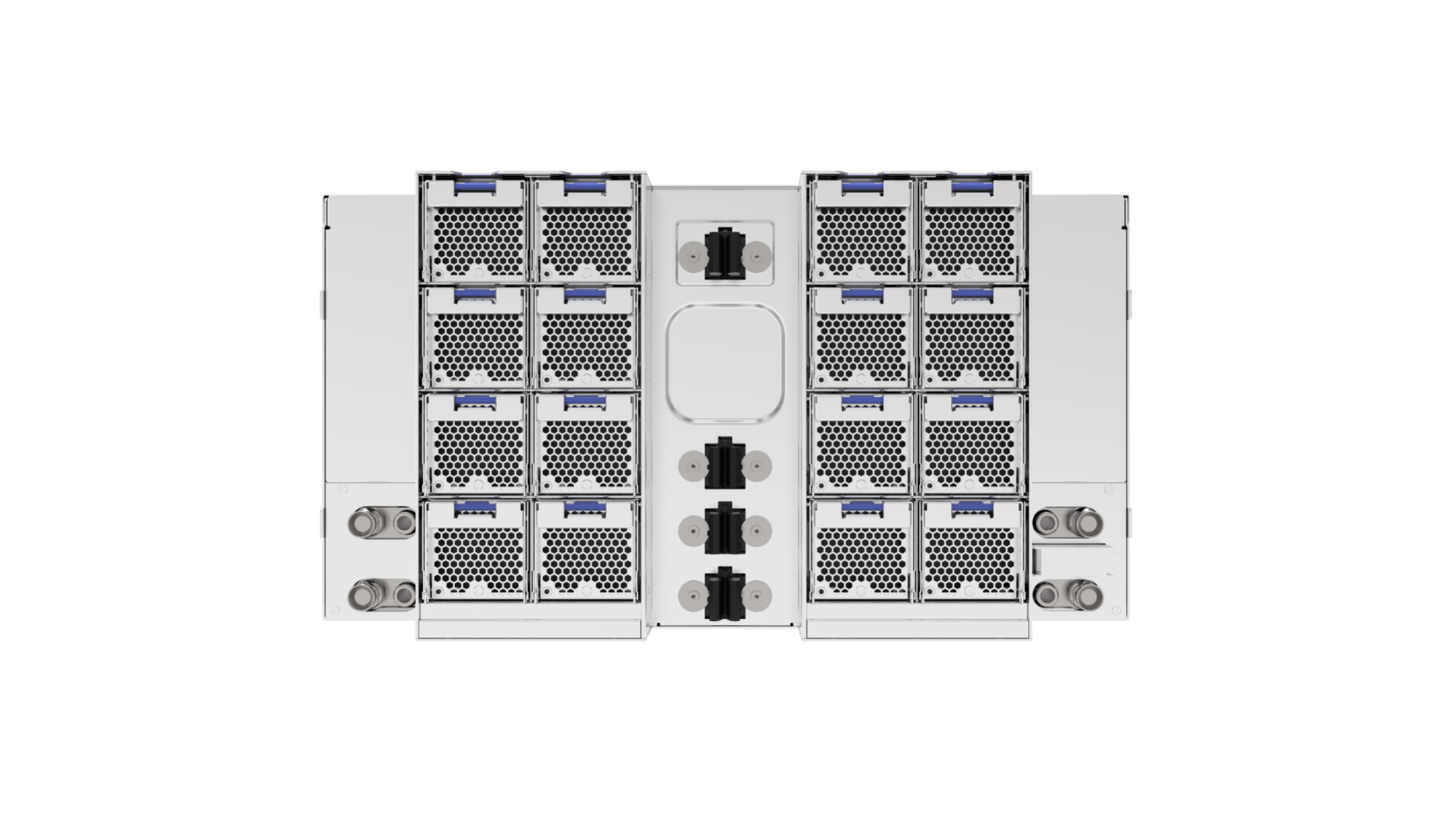

| Fans | 16 x 60*56mm for N+1 Cooling Redundancy |
| Cooling Solution | Liquid Cooling Solution |
| Certification | CE/FCC/RCM/BSMI/UL/IECEE CB |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 85%RH |
| Non-operating Relative Humidity | 5% to 95%RH |
