GB12481N

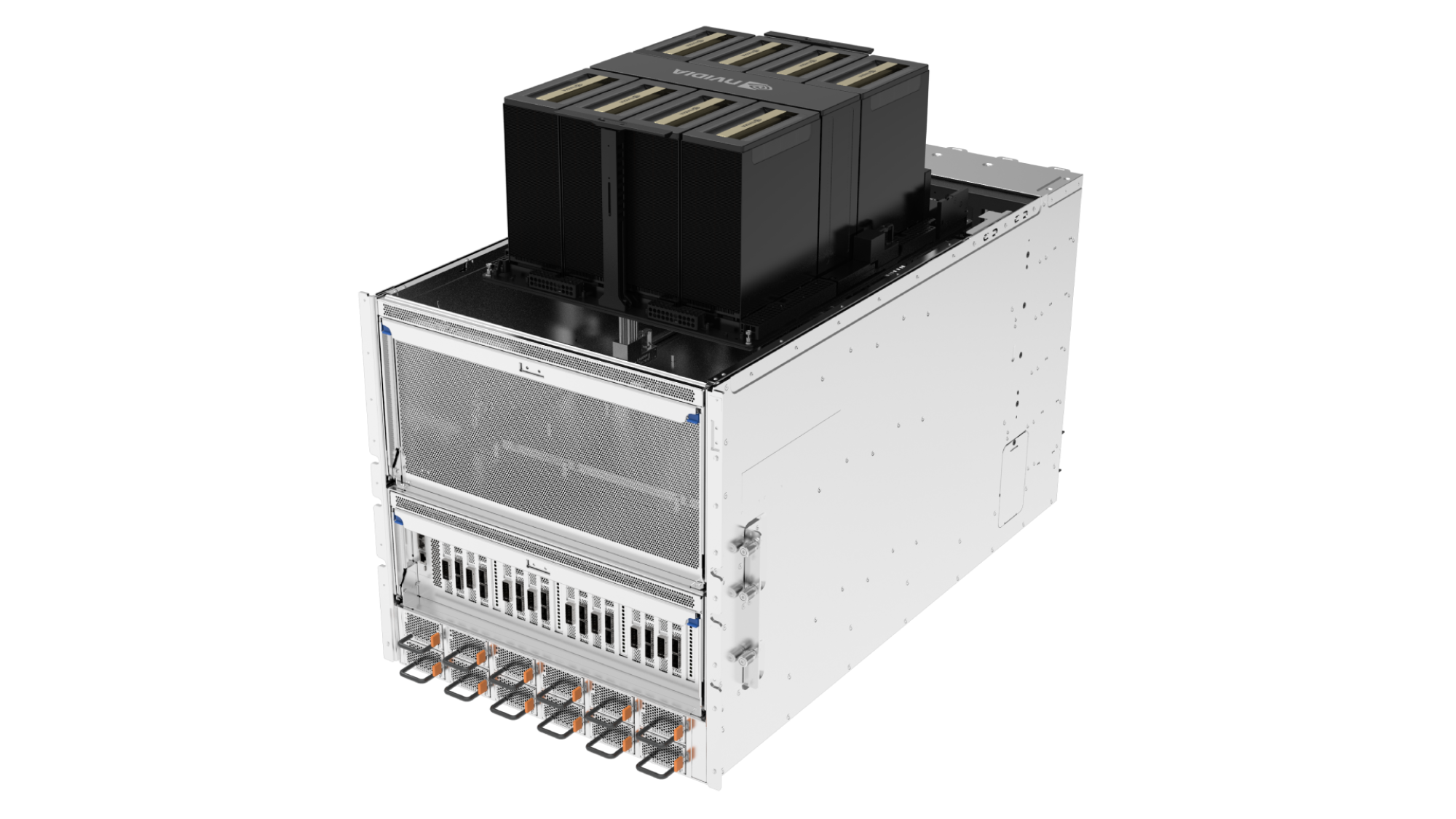

HGX B200 8-GPU Al Solution Optimized for Accelerated Computing and Generative AI

Support NVIDIA HGX B200 8-GPU
Deploy NVIDIA NVLink® & NVSwitch™ Technology

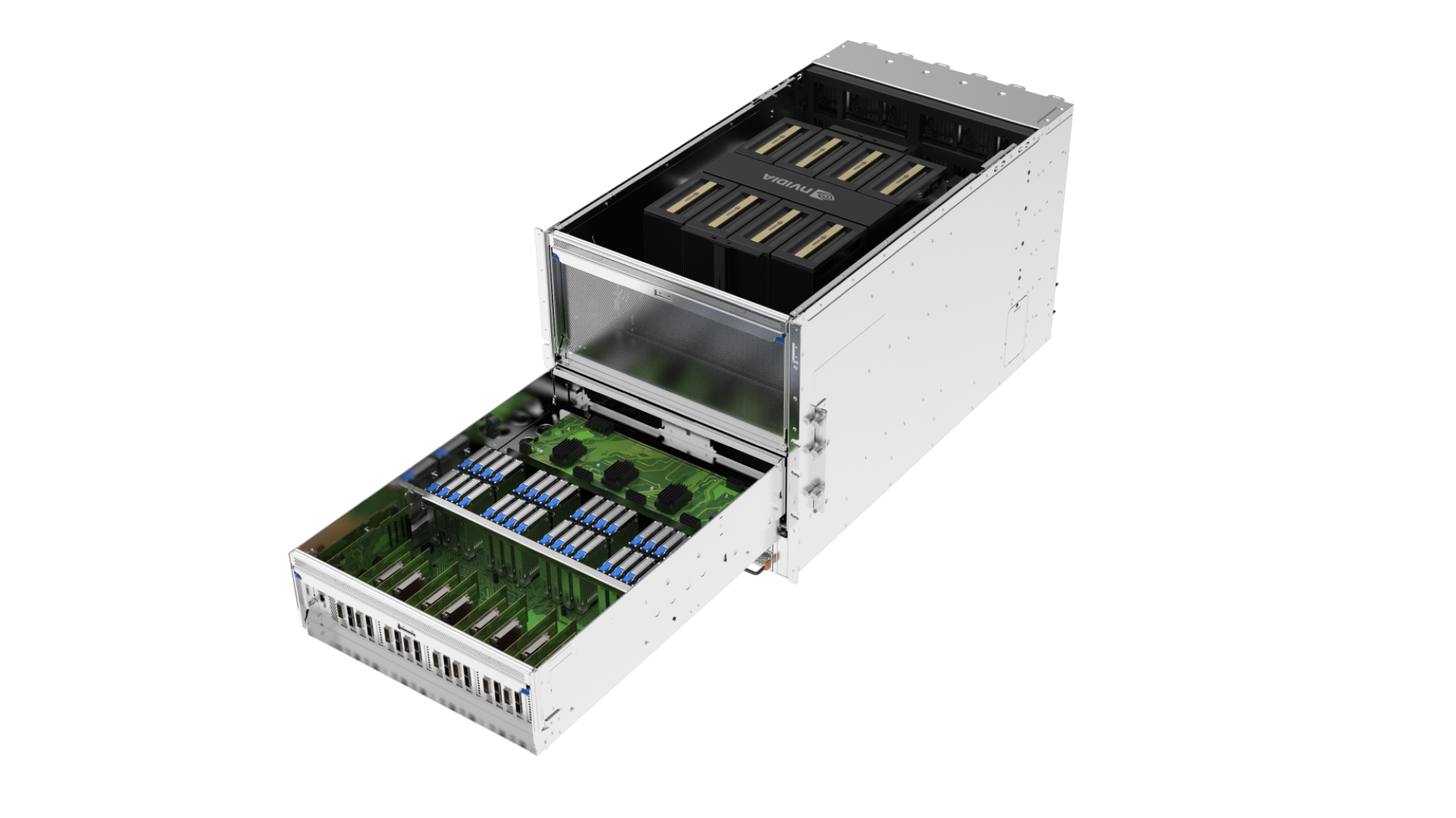

Two-layer GPU and I/O Sleds for Easy Scalability and Better Thermal Efficiency
Support 20 x PCIe 5.0 Slots & 32 x NVMe Drive Bays
Air Cooling Solution

Application

Generative AI

Large Language Model (LLM)

Hyperscale Data Center

High Performance Computing

AI and Machine Learning

Overview

Spec

HGX B200 8-GPU Al Solution

Built on the NVIDIA Blackwell architecture, this AI server is optimized for generative AI and high-performance computing. It integrates eight NVIDIA B200 Tensor Core GPUs, connected via fifth-generation NVIDIA NVLink, delivering up to 72 petaFLOPS for training and 144 petaFLOPS for inference. With a total of 1.4 TB of HBM3e memory across the GPUs, the system provides exceptional memory bandwidth, enabling efficient processing of large-scale generative AI, data analytics, and HPC workloads.

Innovative Disaggregated Approach

The AI server can be paired with a single CPU head node server, creating a unified AI solution. This disaggregated GPU and CPU approach enhances flexibility, enabling you to select the CPU head node server that best suits your needs.
(Ingrasys head node solution: SV2221A/SV2221I)

High Expansion Capability

Adopting a one-GPU-to-one-NIC topology, the powerful server offers high expansion capability by accommodating 8 NICs, which enables fast interconnections between GPUs within a GPU cluster. In addition, its two-layer design features easy scalability up to 32 NVMe Drives and enhances thermal efficiency, allowing the server to deliver unprecedented performance and agility.

Certification

Supported GPU	NVIDIA HGX B200 8-GPU
Expansion Slots	20 x PCIe 5.0 x16 Slots
Storage	32 x Hot-swap U.2 NVMe Drive Bays

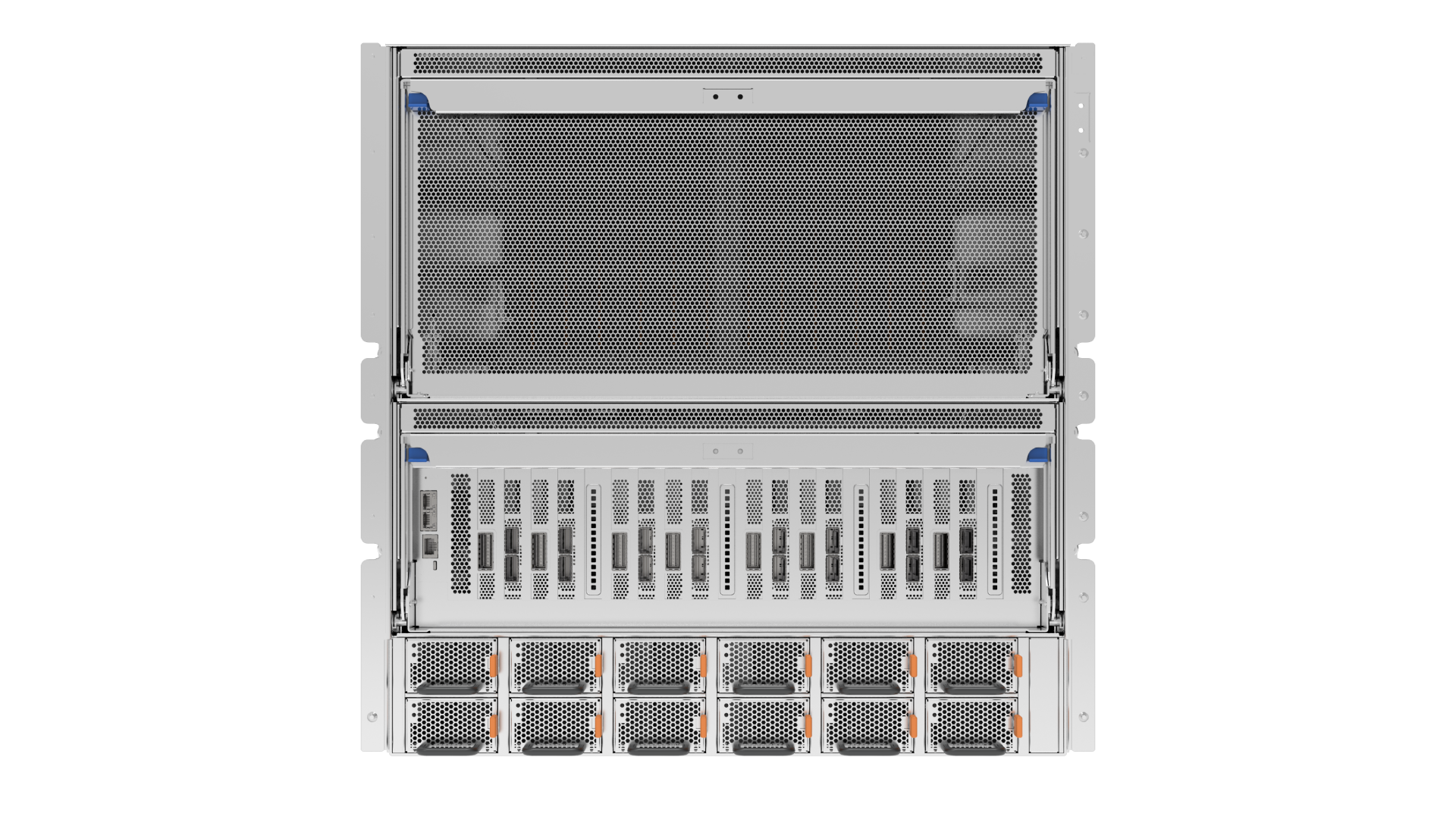

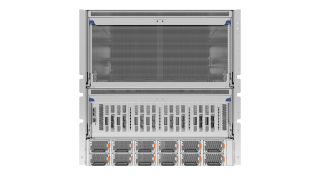

Front Panel	1 x Power LED, 1 x UID LED, 1 x Attention LED 1 x 1GbE/RJ45 Management Port 1 x RJ45 Console Port
Form Factor	12 U Rackmount (4U IOB Sled with 6U GPU Sled)
Chassis Dimensions (H x W x D)	20.8" x 20.0"x 37.3"/ 529.4mm x 508.0mm x 948.0mm
Management	1 x ASPEED AST2600

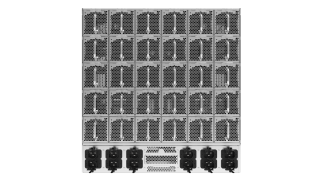

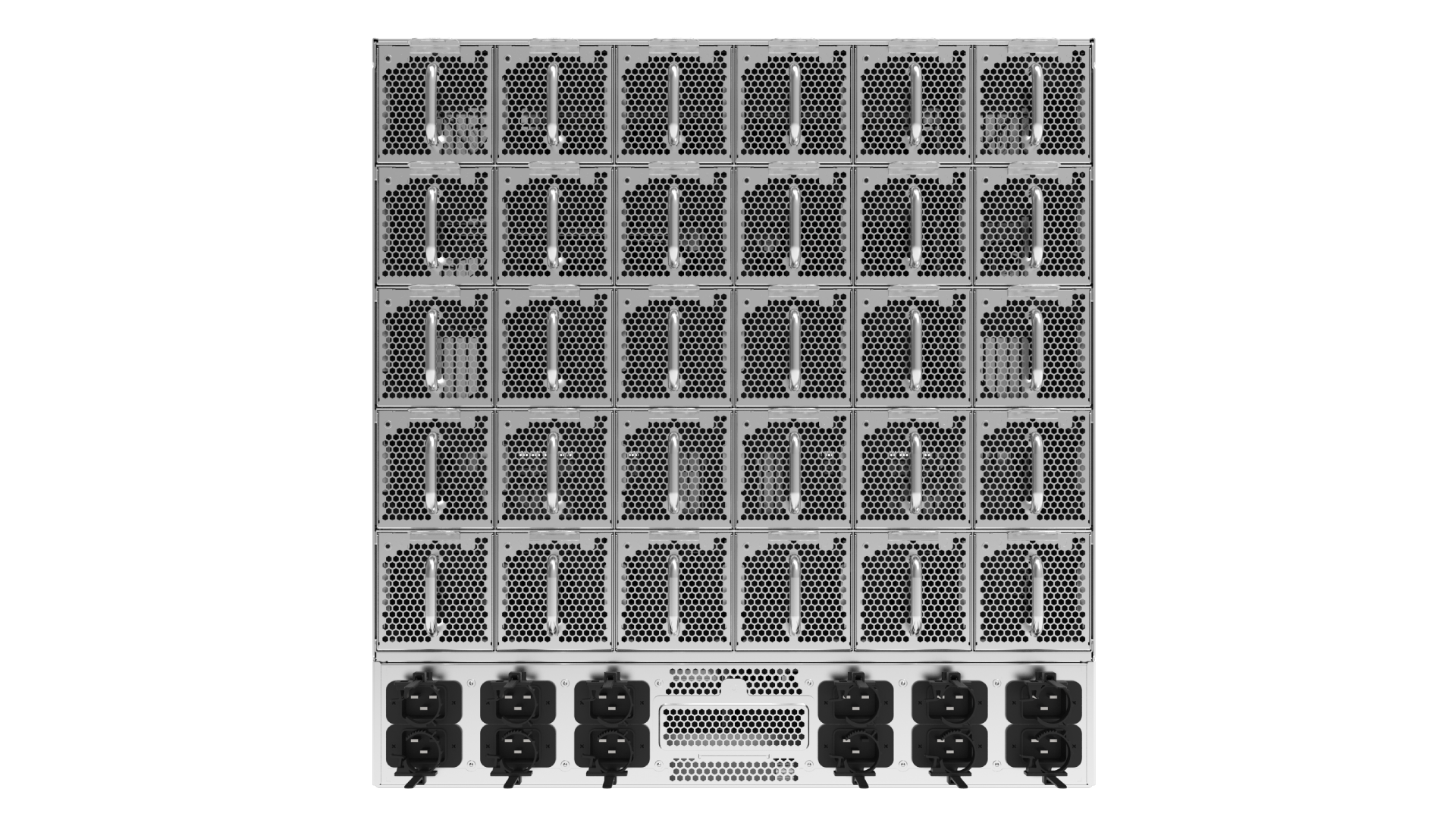

Power Supply	6+6 Redundant 3000W Platinum Power Supplies
Fans	30 x 80*80mm for N+1 Cooling Redundancy
Certification	CE/FCC/RCM/BSMI/UL/IECEE CB
Operating Temperature	10°C to 35°C (50°F to 95°F)
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity	8% to 85%RH
Non-operating Relative Humidity	5% to 95%RH
